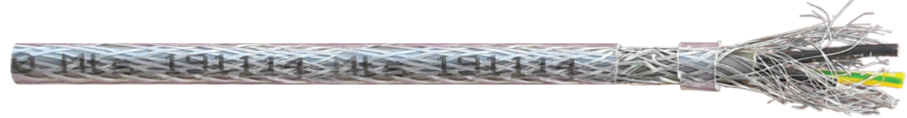

SW-500 TRANSPARENT CABLE

TECHNICAL DETAILS:

Specification

Based on IEC 60227-5 &
VDE 0281

Conductor

Copper class-5 as per IEC 60228

Insulation Resistance

As per BS-6500

Rated Voltage Range

Normal 300/500V
Test Voltage 4000V

Temperature Range

Up to +80°C

Core Identification

As per VDE 0293-308

Minimum Bending Radius

20×cable ∅
For fixed installation 6×cable∅

PRODUCT DESIGN

  • Fine stranded bare copper conductor (Class-5)
  • Core insulation PVC
  • Inner sheath PVC, Color-Grey
  • Braid of stainless steel wire
  • Outer sheath PVC, Color-Transparent

PRODUCT FEATURES

  • Flame retardant IEC 60332-1
  • Oil & Chemical Resistant

APPLICATION RANGE:

  • Plant engineering, Industrial machinery, Heating & Air conditioning system, area with high mechanical stress
PART NUMBER NUMBER OF CORES X CROSS-SECTIONAL AREA (mm²) OVERALL DIAMETER APPROX(mm) WEIGHT OF CABLE APPROX(kg/km)
SSW02 005 2×0.50 7.8 87
SSW03 005 3G 0.50 8.1 95
SSW04 005 4G 0.50 8.5 107
SSW05 005 5G 0.50 9.2 123
SSW07 005 7G 0.50 9.7 147
SSW02 075 2×0.75 8.2 97
SSW03 075 3G 0.75 8.5 108
SSW04 075 4G 0.75 9.2 126
SSW05 075 5G 0.75 9.7 146
SSW07 075 7G 0.75 10.3 172
SSW02 001 2×1.0 8.5 106
SSW03 001 3G 1.0 8.8 119
SSW04 001 4G 1.0 9.5 141
SSW05 001 5G 1.0 10.1 164
SSW07 001 7G 1.0 11.0 200
SSW02 105 2×1.5 9.3 128
SSW03 105 3G 1.5 9.7 151
SSW04 105 4G 1.5 10.2 173
SSW05 105 5G 1.5 11.1 202
SSW07 105 7G 1.5 11.9 248
SSW02 205 2×2.5 10.9 195
SSW03 205 3G 2.5 11.1 206
SSW04 205 4G 2.5 12.1 249
SSW05 205 5G 2.5 13.2 295
SSW07 205 7G 2.5 14.3 373
SSW04 004 4G 4.0 14.0 348
SSW05 004 5G 4.0 15.1 410
SSW04 006 4G 6.0 16.2 482
SSW05 006 5G 6.0 17.7 579
SSW03 010 3G 10.0 18.2 685
SSW04 010 4G 10.0 19.4 731
SSW05 010 5G 10.0 21.5 889
SSW03 016 3G 16.0 21.2 1285
SSW04 016 4G 16.0 22.4 1384
